Active Harmonic Filters
Shaping electrical power!

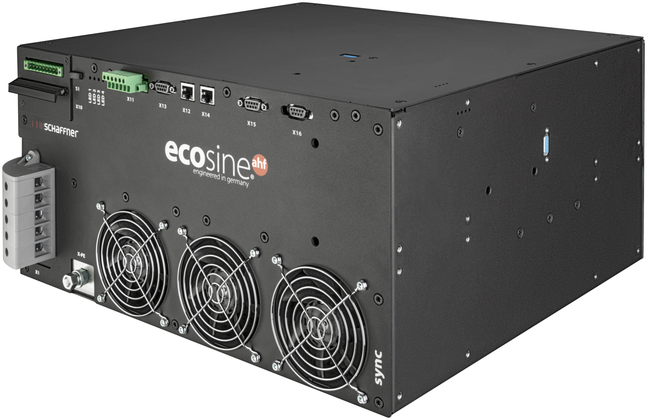

The new modular Schaffner ECOsine™ series offers fitted and economical
solutions for the most demanding harmonic
mitigation challenges with any kind of non-linear
load involved. Ecosine active sync filter series
provides a solution concept which is modular,
compact and can be used as stand-alone modules or
as system solution. The optional sync module offers a
smart load Management of the filter’s usage and
allows redundancy which guarantees a smart power
quality solution in the era of Industry 4.0. We provide active harmonic filters with excellent
performance in solving power quality problems
focusing on customer needs and application
demands for cleaner and smarter energy.
Schaffner ECOsine™ benefits and field of applictaion
Schaffner ECOsine™ active harmonic filters provide the followings:
- Most effective harmonic mitigation up to the 50th order, parameter setting for even and odd harmonics
- Compact active harmonic filter for 3-phase loads with and without neutral wire
- <5% THDi achievable even on most complex mixed loads and changing load profiles
- New modular desig modular design with intelligent system approach offering tailored solutions for different applications and customers
- Long-term savings in the area of system operation and maintenance
- 3-Level IGBT inverter topology for reduced power losses
- Extended temperature range of modules up to 50°C
- Ultra-fast and dynamic reactive power compensation (inductive and capacitive)
- Load balancing and unloading of neutral wires
- Flicker compensation (if caused by reactive power)
- Compliance with IEEE 519, EN 61000-3-12 and
other power quality standards
Typical applications:
- Building technology
- Automation industry
- Data centers
- Elevators
- Water/waste water treatment plants
- Oil and gas exploration
- Welding equipment
- Steel industry
- Coolers and pumps
- Battery chargers
- HVAC installations
- Paper mills
- Tunnel ventilation
- Machines and Automation
Technical specifications
Number of phases (system input) | 3-phase, 3-wire or 3-phase 4-wire |
| Mains frequency | 50/60 Hz+/- 3 Hz |
| Mains voltage
| 3-wire: 200 VAC - 480 VAC+/-10%
4-wire: 200 VAC - 415 VAC +/-10% |
| Inverter topology | 3-level NPC topology, IGBT
|
| Switching frequency | 16 kHz |
| Response time | < 100 μs |
| Harmonic mitigation performance | up to the 50th harmoninc |
| Total harmonic current distortion THDi | < 5% |
| Power Factor Correction | cosφ= -0,7 ... 1 ... 0,7 |
| Dimensions of a single unit | 440 mm x 420 mm x 222 mm (w x d x h) |
| Rated phase mitigation current | 60 Arms |
| Rated neutral conductor mitigation current | 180 Apk |
| Overload capability (Amp for 10 ms) | 150 A |
| Current transformer placement | Mains side or load side |
| Current transformer ratio | 50...50000:5A or 50...50000:1A |
| Mounting | Wall-mounting (book or flat mounting) |
| Weight of a single unit | 44 kg |
| Cooling type | Air cooling |
| Communication interface | Ethernet TCP/IP, Modbus RTU RS485 |
| Digital I/O | 2 DIO + 2 DIO |
| Ambient temperature of power modules | 0...50C full performance up to 55C with derating of 3% per Kelvin |
| Power losses | <1100W under full mitigation performance (<2,6%) <970W in typical operation (<2,3%) |
| Protection class | IP 20 / IP 21 |
| Noise level | <56 to 63 dB A (depending on load situation) |
| Self-protection | Yes |
| Overheat protection | Yes |
| Overvoltage and undervoltage protection | Yes |
| Recommended fuse protection | 100A, type gL or gG |
| Earthing system | TT, TN-C, TN-S, TN-C-S, IT, corner grounded delta |
| Altitude | <1000m without derating, up to 4000m with derating 1% / 100 m |
| Ambient conditions | Pollution degree 2 Relative humidity < 95% non-condensing, 3K3 Temperature: Storage 55C, 1K3, 1K4, Transportation -25C to 75C, 2K3 |
| Approval | CE, RoHS, cUL |
| Design standards | IEC 61000-4-2, 4-4, 4-5, 4-6 EN 61000-3-11, 3-12 EN 61000-6-2 EN 55011 EN 62477-1 EN 61800-3 |
